Next-Gen Foot Spa and Massager Development: Thermal Dynamics, Kinetics, and Safety

The global personal wellness appliance sector is witnessing an unprecedented convergence of mechatronic engineering, human factors design, and advanced thermal hydrotherapy. At the focal point of this transformation sits the modern foot spa and massager, an appliance that has transitioned from an elementary vibrating basin into a complex, multi-modal electro-mechanical device. For brand managers, procurement heads, and product engineers sourcing within the personal care appliance space, grasping the inner workings of fluid mechanics, thermodynamic control, and kinematic engineering within these units is essential for maintaining a competitive portfolio.

Consumer expectations now demand deep tissue manipulation, exact temperature regulation, acoustic suppression, and long operational lifespans within compact footprints. Delivering these capabilities requires manufacturing precision that addresses water-electrical isolation, chemical resilience against essential oils, and motor torque profiles capable of sustained loads. Evaluating manufacturing partners requires deep technical scrutiny across material science, embedded firmware, and electro-mechanical assembly protocols.

Biomechanical Principles and Hydrothermal Synergy

Effective physiological therapy relies on the targeted combination of active hydrodynamics, thermal energy, and mechanical acupressure. Plantar anatomy features dense concentrations of mechanoreceptors, neurovascular bundles, and connective fascia. Modern therapeutic appliances optimize benefits through three synchronized modalities:

• Targeted Peripheral Vasodilation: Sustained water temperatures between 38°C and 43°C decrease vascular resistance, encouraging arterial blood supply to the distal extremities while accelerating metabolic waste clearance.

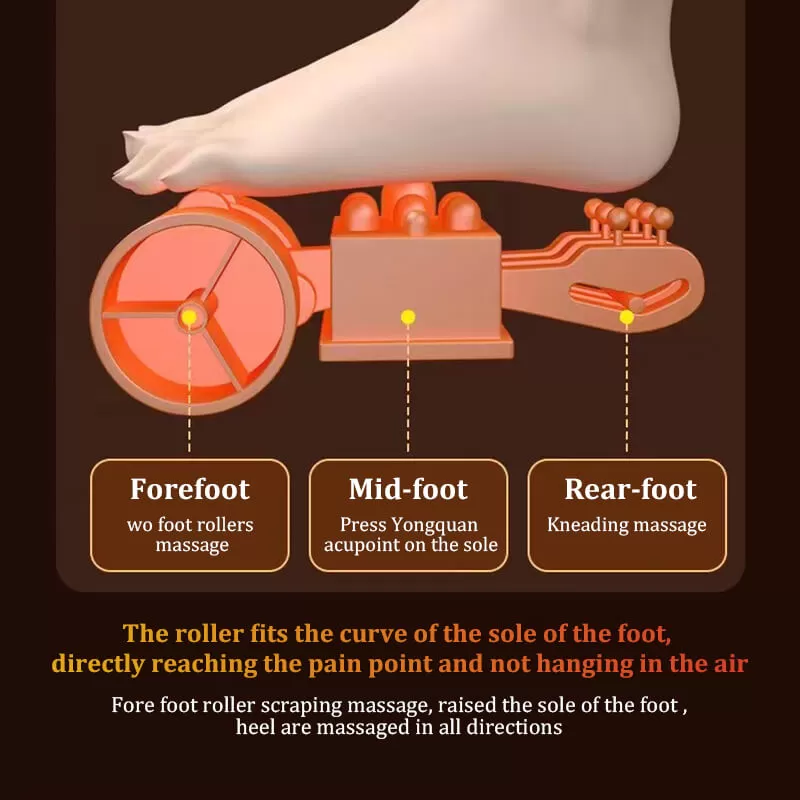

• Acupoint Kinematic Manipulation: Mechanical nodes configured around the Yongquan (KI1) point and plantar aponeurosis disrupt myofascial tension patterns using planetary gear sets or multi-axis roller bars.

• Micro-Bubble Hydro-Oxygenation: Aeration manifolds inject high-velocity oxygen-rich air micro-currents to create gentle kinetic percussion across the dorsal and collateral surfaces of the foot.

When engineering a premium foot spa and massager, achieving harmony among these therapeutic vectors requires balanced power distribution. Thermal systems must run without siphoning necessary current away from high-torque mechanical drives, all while fitting inside stringent household circuit wattage envelopes.

Electro-Mechanical Architecture and Component Engineering

Beneath the injection-molded chassis lies an intricate electro-mechanical infrastructure. System integrity hinges on component selection, heat dispersion strategies, and the design of dynamic water seals.

Thermodynamic Control: PTC vs. Direct Resistance Heating

Traditional electric heating elements pose reliability challenges when deployed in cyclical, moist environments. Advanced production lines now leverage Positive Temperature Coefficient (PTC) ceramic heating semiconductors. PTC ceramics naturally limit current as temperatures increase, providing inherent protection against runaway thermal states. These heating modules are encapsulated within die-cast aluminum heat exchange conduits, completely isolating the liquid path from the electrical grid.

Temperature control depends on embedded NTC thermistors paired with proportional-integral-derivative (PID) microcontrollers. Rather than relying on simple bang-bang (on-off) relays that generate wide thermal swings, PID logic adjusts triac pulse widths to maintain water temperatures within ±0.5°C of set points. This tight control protects user safety while minimizing power consumption.

Kinematic Assemblies and Actuation Systems

Plantar tissue manipulation requires substantial drive power. Modern units incorporate a range of mechanical configurations tailored to distinct price points and chassis designs:

• Planetary Roller Arrays: Spur and planetary gear assemblies translate rotational motor output into rolling acupressure. Gear components molded from self-lubricating polyoxymethylene (POM) limit mechanical wear and reduce gear lash noise over extended duty cycles.

• Shiatsu Kneading Discs: Eccentric cams drive multi-point silicone nodes that replicate human kneading motions. These components require higher stall-torque ratings, making high-efficiency brushless direct current (BLDC) motors the preferred choice over traditional shaded-pole AC induction alternatives.

• Scraping and Oscillating Pedi-Stones: Secondary kinematic shafts drive oscillating dermabrasion discs at the center median, demanding dynamic shaft seals to prevent water migration down the drive spine.

Actuator lifespan depends on bearing durability. Double-shielded, stainless-steel ball bearings running within food-grade silicone O-rings safeguard drive components against damp conditions and surfactant exposure.

Acoustic Management and Fluid Dynamics

Operating sound levels directly dictate user satisfaction. Decibel generation stems from three sources: motor resonance, gear mesh vibration, and pump cavitation. High-tier designs keep operating noise below 45 dB(A) by implementing tuned elastomer isolation mounts beneath the motor chassis, switching to helical gearing profiles, and refining impeller vane geometries within the bubble aeration pumps.

Advanced Material Selection and Industrial Design

The operational environment of a hydrothermal foot bath presents severe chemical and mechanical stresses. Materials must withstand mechanical drop impacts, cyclical thermal loading, surfactants, therapeutic bath salts, and concentrated natural oils without experiencing environmental stress cracking (ESC).

Chassis shells are predominantly molded from virgin polypropylene (PP) or high-impact acrylonitrile butadiene styrene (ABS). Polypropylene provides exceptional chemical resistance against oily additives and acid-base cleansers, whereas ABS provides higher torsional rigidity and an elevated cosmetic finish. For premium structural elements exposed to direct water contact, talc-filled or glass-filled PP provides dimensional stability across temperature shifts without warping.

The expansion of the space-saving household segment has propelled the development of collapsible appliances. These units employ dynamic hinges manufactured from thermoplastic elastomers (TPE) or high-grade thermoplastic polyurethanes (TPU). The flexural fatigue properties of these materials must survive at least 10,000 collapse-and-deploy cycles at temperatures ranging from 0°C to 50°C. Tooling engineers must formulate wall thicknesses and mold radii to avert mold sink lines, flow shear marks, and molecular fatigue zones along bending seams.

Electrical Safety Architecture and Regulatory Compliance

Immersing human extremities in an electrically heated fluid volume demands rigorous safety engineering. International compliance directives mandate comprehensive multi-barrier isolation systems across every production lot.

• Galvanic Isolation and Creepage Distances: Printed circuit board (PCB) layouts demand strict spatial separation between high-voltage alternating current (AC) traces and low-voltage direct current (DC) logic paths. Minimum creepage and clearance metrics adhere to standard IEC/EN 60335-1 and IEC/EN 60335-2-32 mandates.

• Ground Fault Circuit Interrupters (GFCI): Power cords integrated with specialized inline ALCI (Appliance Leakage Current Interrupter) or PRCD plugs automatically terminate power supplies within 25 milliseconds whenever leakage current excursions exceed 4 to 6 milliamperes.

• Redundant Thermal Cutoffs: PTC assemblies incorporate both bi-metal snap-action thermal limiters and one-shot non-resettable thermal fuses. If liquid sensors experience a dry-burn condition, these fuses permanently decouple power prior to chassis deformation.

• Ingress Protection Protocols: The structural assembly must satisfy IPX4 (splash proofing) or IPX7 (temporary immersion) standards. Enclosures housing circuit boards undergo automated polyurethane or silicone conformal coating, safeguarding surface-mount components against moisture intrusion and corrosion.

Manufacturing facilities, including advanced contract manufacturers like Jingtuo, subject finished units to automated testing arrays, including 3750V dielectric hi-pot breakdowns, ground continuity verifications, and helium-decay vacuum leak tests on isolated motor housings.

Overcoming Supply Chain and Manufacturing Bottlenecks

Navigating consumer wellness production reveals several persistent manufacturing bottlenecks. Unaddressed assembly vulnerabilities frequently drive elevated return merchandise authorization (RMA) rates and erode retail margins.

Managing these operational considerations calls for robust quality assurance frameworks across Tier 1, 2, and 3 suppliers. Comprehensive component validation requires rigorous 500-hour continuous salt-spray exposures for metal inserts, dynamic thermal shock cycling (-20°C to 70°C), and ISTA 3A distribution drop testing to ensure fragile internal plumbing structures remain sealed during transit.

Customization Paths in OEM and ODM Production

Wholesale distributors, consumer tech brands, and private label retailers navigate tight product lifecycles. Success requires striking a balance between off-the-shelf platform economies and differentiated industrial designs.

Engaging an agile ODM partner like Jingtuo allows businesses to leverage pre-certified internal mechanical architectures while customizing the external design expression. Industrial design divergence is achieved through targeted modifications:

• Interface Architecture: Swapping membrane pushbuttons for capacitive touch glass interfaces, dynamic hidden-until-lit LED displays, or smartphone app control managed through integrated Tuya/Matter-compatible BLE/Wi-Fi microcontrollers.

• Cosmetic CMF Strategies: Deploying double-shot mold textures, matte metallic lacquer coats, and molded metallic-trim inserts that elevate shelf appeal without altering structural molds.

• Aromatherapy and Infusion Modules: Adding isolated herb and salt diffusion cartridges that prevent botanical sediment from clogging hydro-pump filters and impeller nozzles.

Well-engineered modular platforms cut commercialization timelines from sixteen months down to twenty-two weeks, giving brands a fast path to capture shifting seasonal wellness trends.

Future Trajectories in Plantar Therapy Technology

The consumer hydrotherapy sector continues to embrace emerging industrial and digital technologies. Next-generation systems will blur the boundary between home relaxation appliances and medical-grade diagnostics. R&D teams are actively refining several operational enhancements:

Acoustic cavitation hydro-massage represents an emerging frontier. High-frequency micro-ultrasound transducers emit controlled shock waves through the water, cleaning skin porosities and stimulating micro-circulation without the friction or mechanical wear common to rotating physical nodes.

Plantar health telemetry is also expanding. Micro-sensors embedded across foot plates can map weight distribution, measure pulse wave velocities through photoplethysmography (PPG), and estimate peripheral hydration levels. This sensory data feeds smart home wellness platforms, automatically adjusting hydrotherapy water temperatures and roller intensity profiles to target fatigue patterns identified in individual users.

Concurrently, sustainability mandates demand that manufacturers transition away from non-recyclable multi-resin constructions. Progressive assembly facilities are pursuing mono-material chassis engineering, using circular polypropylenes and recyclable thermoplastic silicones that allow for easy automated disassembly at the end of product life.

Frequently Asked Questions

What structural provisions prevent electrical shock in a hydrotherapy basin?

Electrical safety is established through three layers of physical and mechanical separation. High-voltage heating elements are encased within isolated aluminum heat exchangers that separate electrical current paths from the water flow. Motors operate on low-voltage DC rails or sit inside hermetically sealed chambers protected by double-barrier silicone gaskets. Systems are supplemented with integrated ALCI/PRCD interrupter plugs and optoisolated microcontrollers, ensuring comprehensive galvanic separation across all internal components.

How do manufacturers resolve the seal degradation caused by bath additives?

Standard nitrile and natural rubber seals rapidly soften or crack when exposed to essential oils and bath salts. Durable engineering addresses this by switching all wet seals to fluorocarbon elastomers (FKM) or medical-grade platinum-cured silicones. Internal piping and pump impellers are molded from chemically inert polypropylene or PVDF plastics rather than vulnerable styrene blends.

Why are brushless DC (BLDC) motors preferred over AC induction designs?

While AC motors carry lower upfront component costs, they are heavy, generate substantial internal heat, and provide limited torque at low operating speeds. BLDC motors deliver elevated energy efficiency, generate minimal internal heat, and sustain stable torque curves across variable loads. This dynamic torque ensures massage rollers will not stall when a user exerts their full body weight onto the footplates.

What testing methods confirm the longevity of collapsible chassis walls?

Collapsible basins undergo automated multi-axis endurance trials. Pneumatic actuators flex, collapse, and open the basin structure inside environmental test chambers maintained at dynamic temperature extremes (-10°C to 45°C). The test requires the elastomeric TPU/TPE hinge to endure at least 10,000 cycles without showing micro-tears, joint de-lamination, or elastic deformation.

What is the minimum tooling lead time for a fully customized ODM housing?

Developing a custom exterior chassis requires twelve to sixteen weeks for mold tooling and qualification. This workflow spans CAD/CAM modeling, dynamic mold-flow simulations, CNC tool steel cutting (P20 or H13 tool steel), surface etching, and initial T1 injection runs. Integrating ready-made, pre-certified internal mechanical and heating platforms—an approach championed by manufacturing partners like Jingtuo—can shorten this development timeline by roughly 40%.
